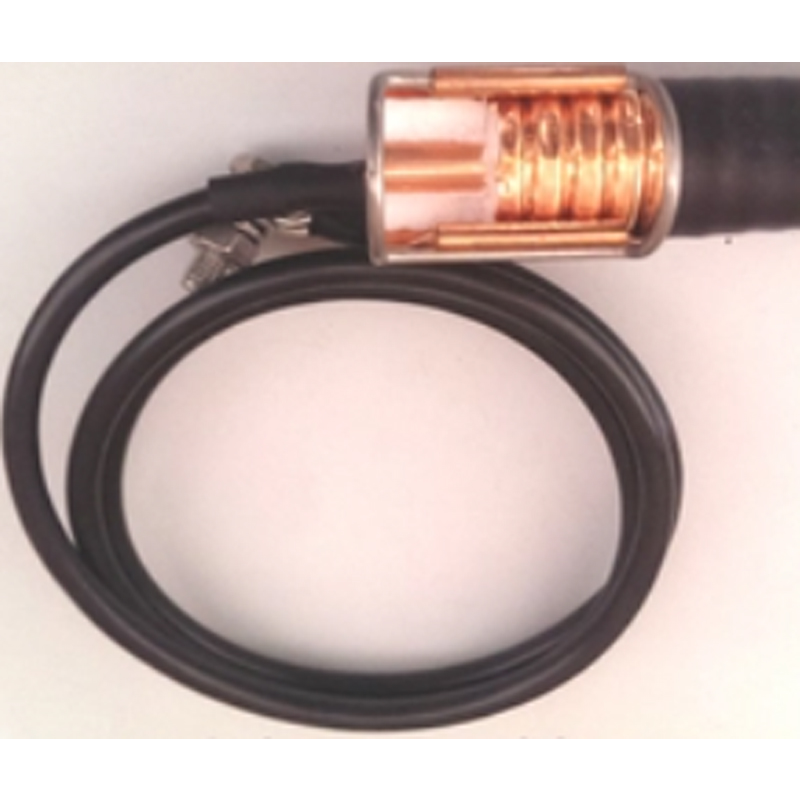

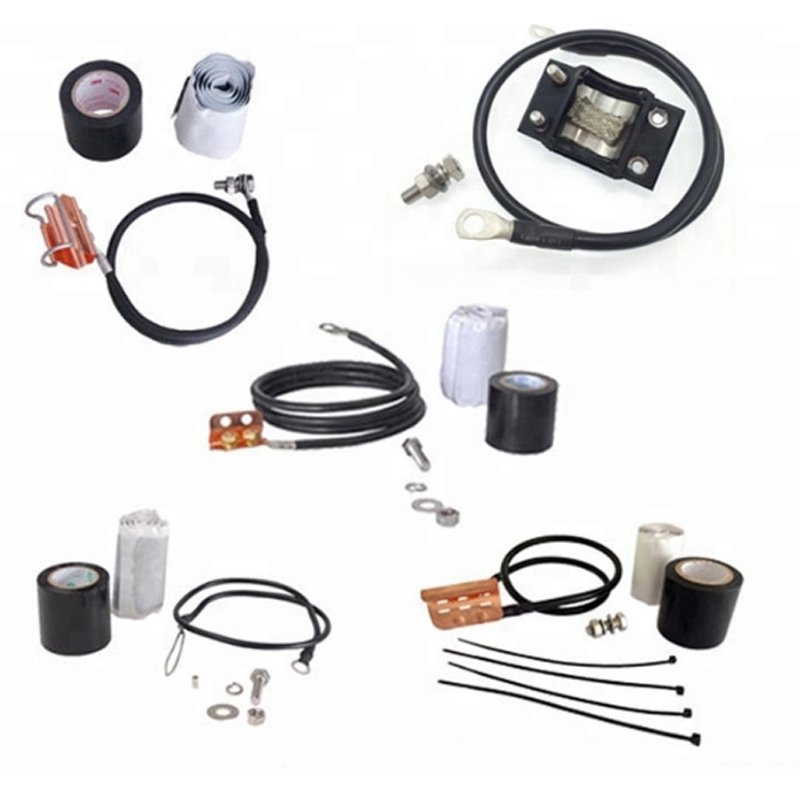

Feeder Buckle cable Grounding Kit With 3M Weatherproof Tape For 7/8” coax Cable

Coax cable Buckle grounding kit is compact design for outdoor fiber cable’s (corrugated, smooth copper / aluminum or braid) grounding. With Tinned copper strip & butyl seal, framework type grounding kit offers Quick installation, good waterproofing & cost efficiency.

Compare
Add to wishlist
Category:
Description

uick installation, good waterproofing & cost efficiency.

1.Features & specs

  • Inner contact: Tin plated copper braid strap.
  • Grounding clamp:304 stainless steel + EPDM rubber plated to ensure waterproofing.
  • Seal strip: each side has butyl seal strip to ensure water proofing.
  • Grounding / earthing cable:16mm2 or 25mm2 BV or BVR copper wire for earthing to grounding buss bar.
  • Copper lugs: 16-8, 25-8 tin plated copper lugs to connect to grounding bar.
  • Installation accessories: Inner hex bolts for soon installation.



Description Item No. Specification.
Fast fit grounding kit GROUND-FW14 Framework grounding kit for 1/4″ coaxial cable
GROUND-FW38 Framework grounding kit for 3/8″ coaxial cable
GROUND-FW12 Framework grounding kit for 1/2″ coaxial cable
GROUND-FW78 Framework grounding kit for 7/8″ coaxial cable
GROUND-FW114 Framework grounding kit for 1-1/4″ coaxial cable
GROUND-FW158 Framework grounding kit for 1-5/8″ coaxial cable
