Feature
- Support Full Wier-Speed Forwarding
- 16K MAC address table.
- Complete network management functions
- Support flexible DBA, up and down traffic speed control.
- Support lP ToS,IEEE802.1Q
- Support port aggregation
- Port-based traffic control, traffic shaping.
- Support ONU auto-discovery, and auto-registration.
- Support the automatic loop-back test function.
- VLAN powerful features, including VLAN Stacking, Trunk,Translation.
- Support lGMP Function
- Support ACL/QoS
Advantage
- EPON: OLT follows the technical standard of lEEE802.3ah and China telecom.(YD/T 1475-2006)
- Optical link diagnosis: complete warning mechanism
- High reliability: supports dual power supply(Default single power supply).
- Dimension: 1U cassette save space, low power consumption
- Uplink: support electrical and optical modules, can be flexibly configured according to different networking.
- Capacity: Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration.
Technical Parameter

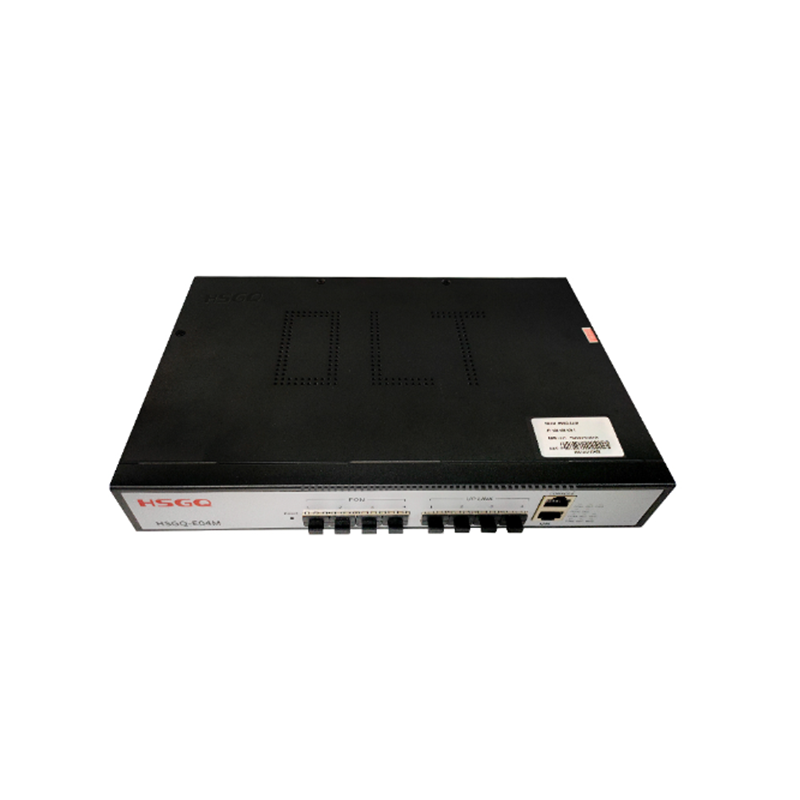

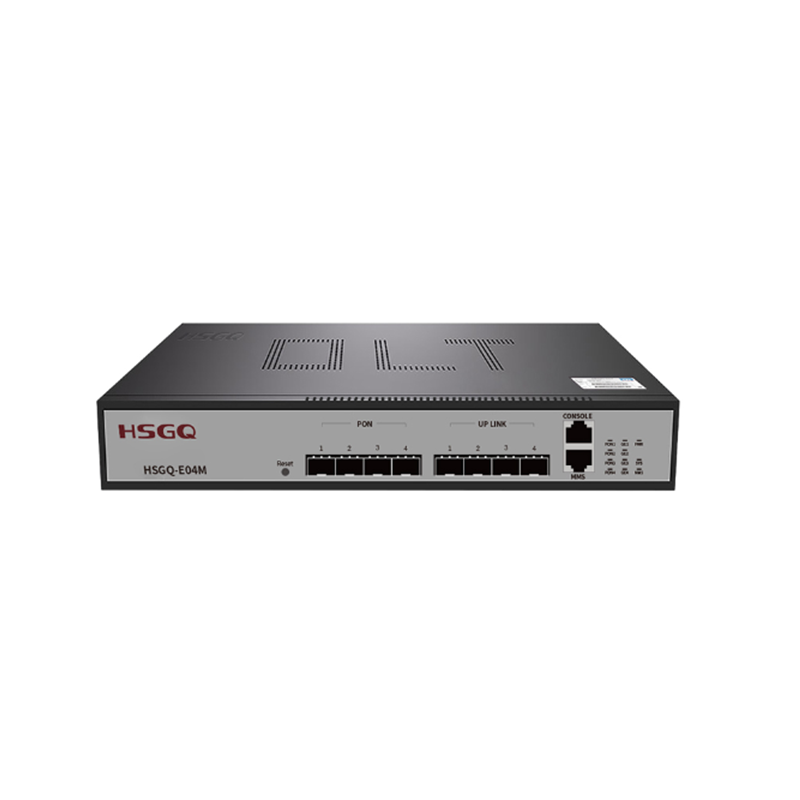

| Model | HSGQ-E04M |
| DDR | 512M |
| FLASH | 32M |
| Size (L*W*H) | Product size:250mm×180mm×44mm

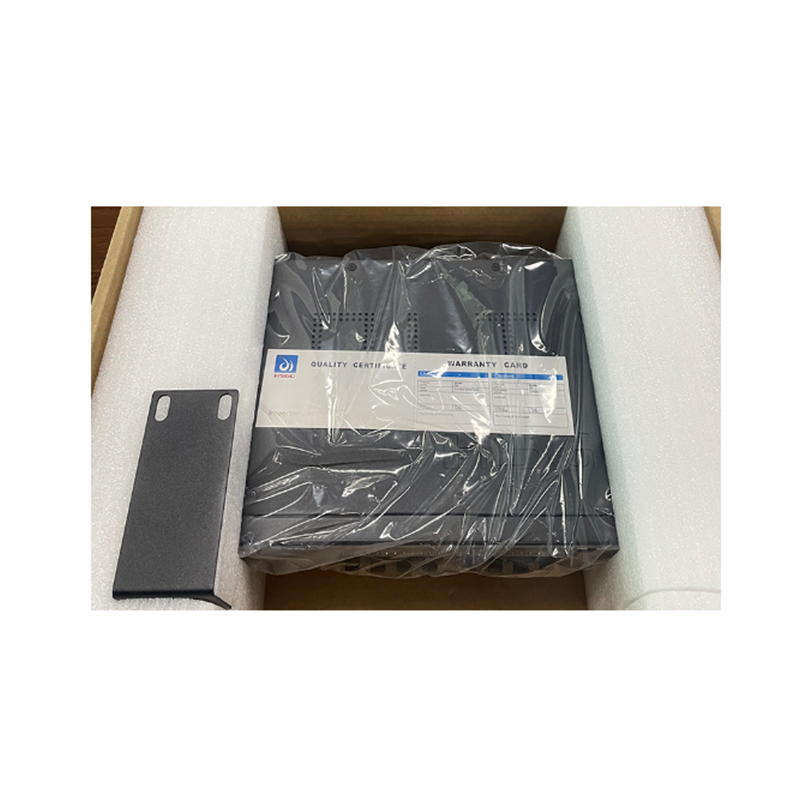

Package size:315mm×190mm×88mm |
| Weight | <4kg |
| Uplink | QTY: 4
SFP: 4 Uplike 1.25G SFP slots |
| PON | QTY: 4
Physical Interface: 4 PON 1.25G SFP slots Optical module Type: 1000BASE-PX20+/PX20++/PX20+++ Max splitting ratio: 1:64 |
| Management Ports | 1*NMS+1*Console |
| Power Input | AC: 100V～240V 47/63Hz |
| PON function | Support auto register
Blacklist and whitelist onu DBA configure P2P ONU authorization |
| Temperature | -10℃~60℃ |
| Humidity | 5%~95% |
| Maintenance | Telnet remote maintenance |
| Support standard | IEEE 802.3ah EPON
IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3z (1000BASE-X) IEEE802.3ab (1000Base-T) IEEE802.1Q(VLAN) IEEEE802.1d(STP) IEEEE802.1W(RSTP) IEEE802.1p(COS) IEEE802.1x(Port Control) IEEE802.3x (flow-control) |
| Configuration and Management | CLI,WEB,SNMP/NMS
SSHv1/v2 Software and bootrom upgrade by TFTP and FTP Record and download log Chinese/English command prompt Ping Debug diagnosis User management; Alarm management. |
| Layer 2 function | Support 4094 VLAN;performance statistic
16K MAC address;mac address management Port mirror Port isolation |
