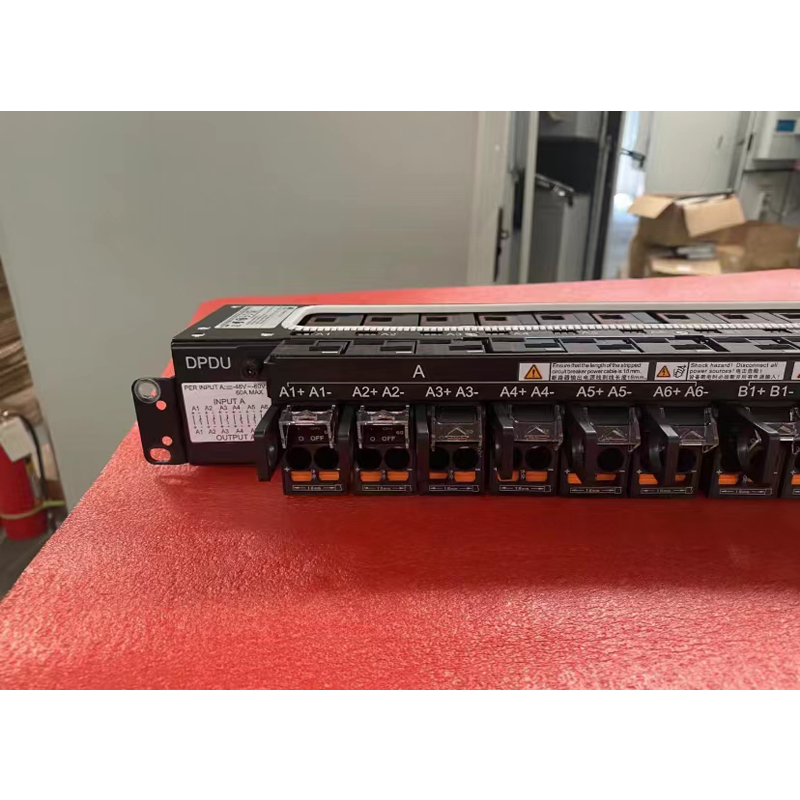

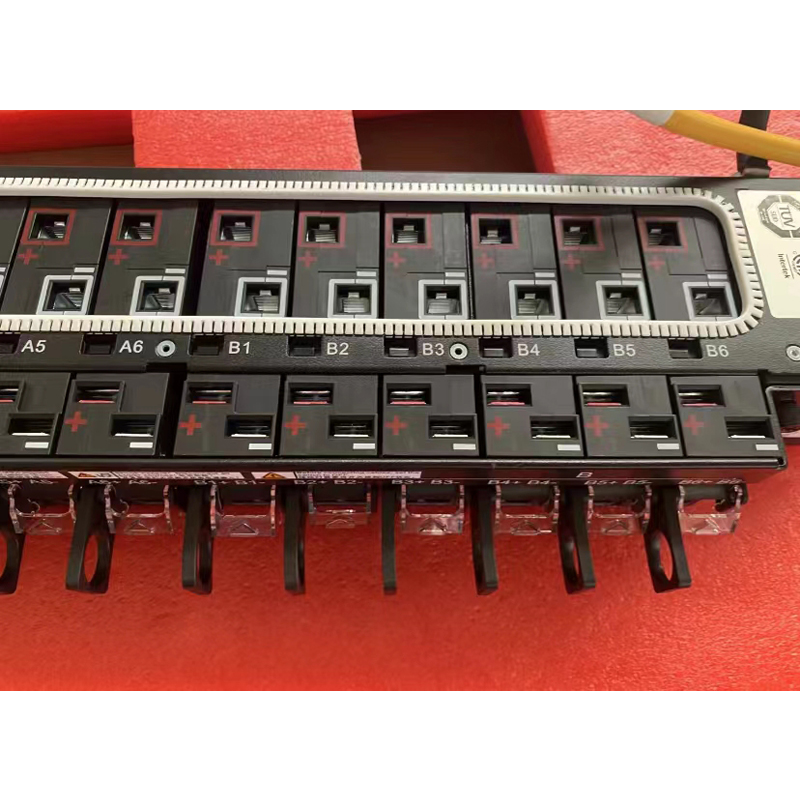

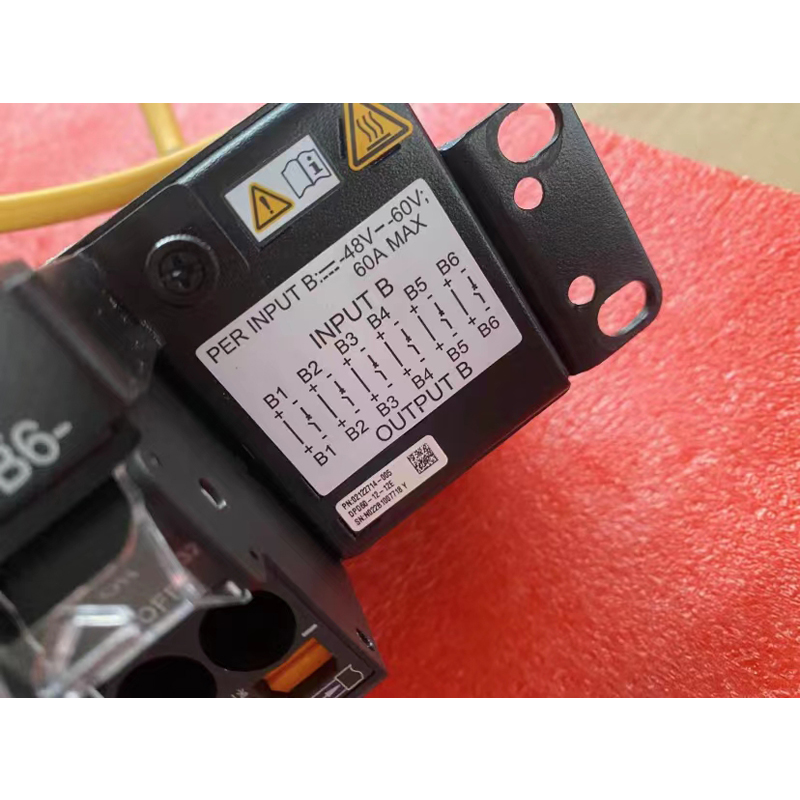

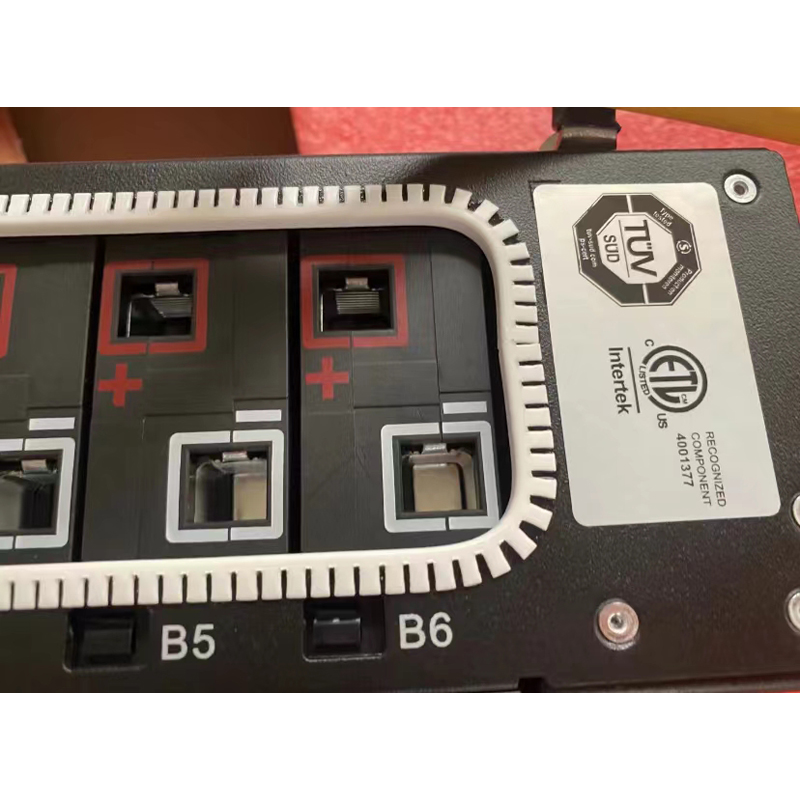

DPD60-12-12 (DC Power Distribution Unit)

Category: power supply

Description

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	62.6 mm x 553 mm x 143.5 mm (2.16 in. x 21.77 in. x 5.65 in.)
Weight without packaging [kg(lb)]	3.7 kg (8.16 lb)
Rated input voltage [V]	-48 V/-60 V
Rated output voltage [V]	-48 V/-60 V
Maximum input current [A]	6 x 60 A + 6 x 60 A
Maximum output current [A]	6 x 60 A + 6 x 60 A
Number of inputs	12
Number of outputs	12
Front-end circuit breaker/fuse [A]	60 A
