Key attributes
Industry-specific attributes

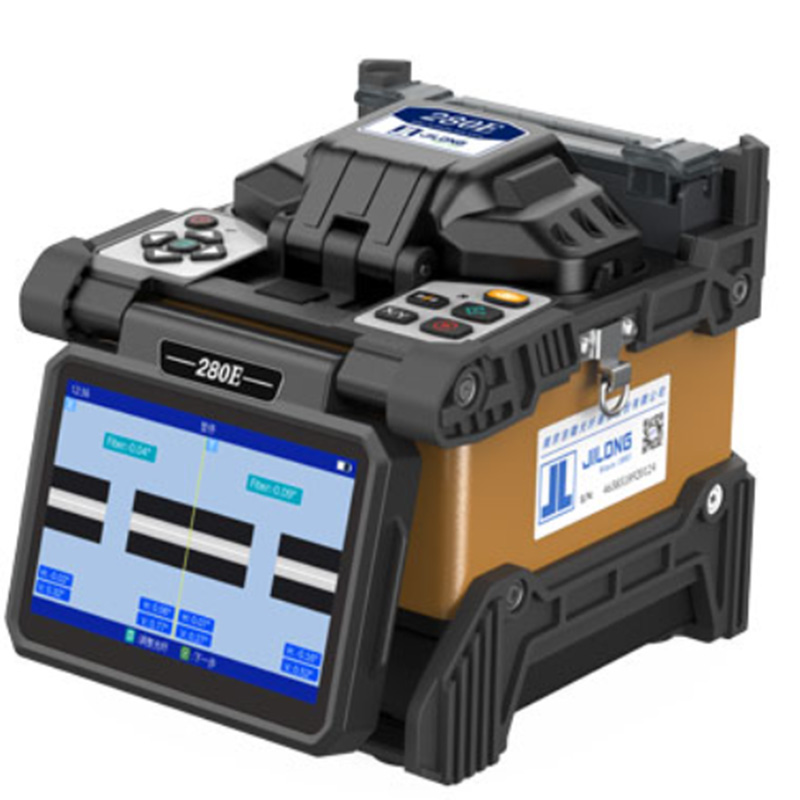

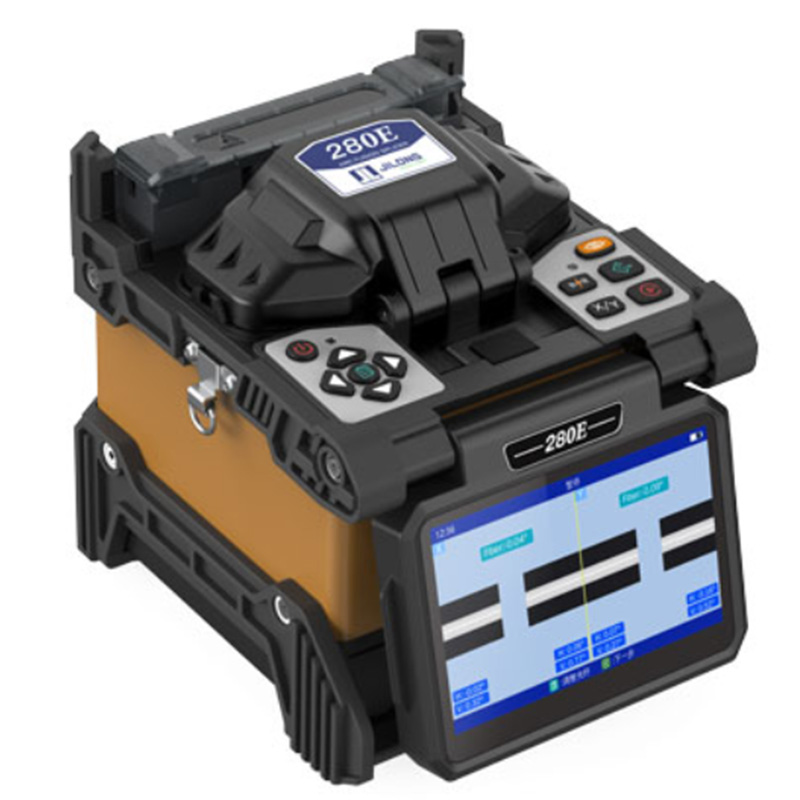

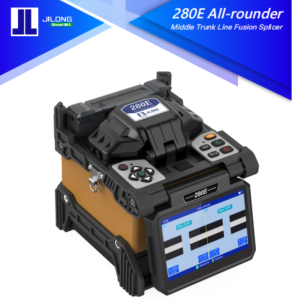

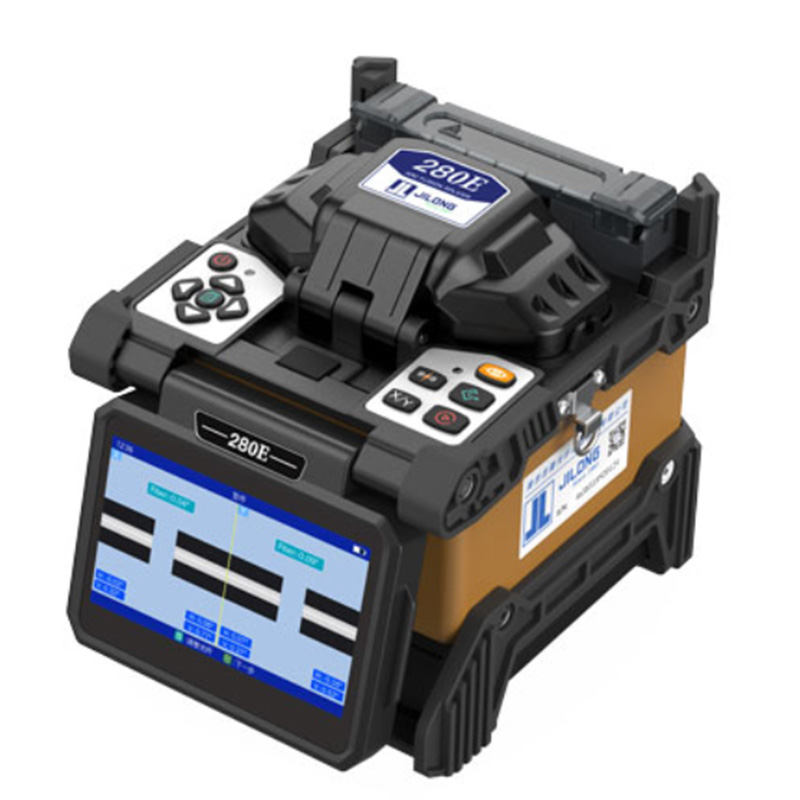

Type Fiber fusion splicer
Other attributes

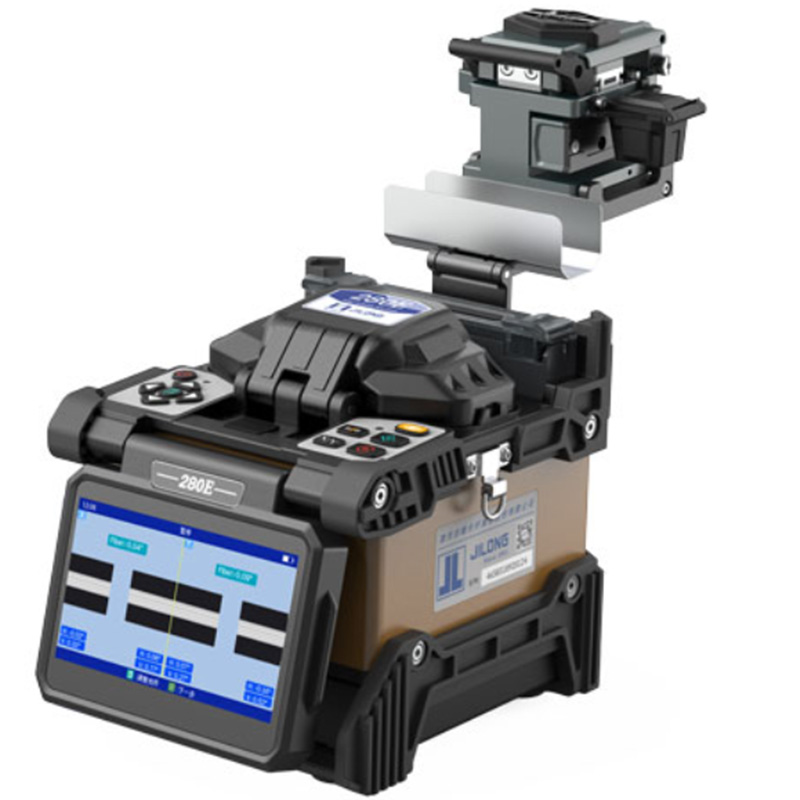

Model Number KL-280E
Place of Origin China
Brand Name JILONG
Specification
| item | value |
| Model Number | KL-280E |
| Type | Fiber fusion splicer |
| Place of Origin | China |
| Brand Name | JILONG |

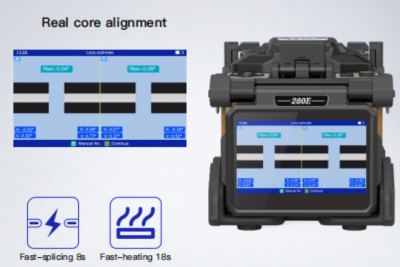

| Splice Method | Core Alignment |
| Aplicable Fibers | SM(TU_T G.652&G.657)/ MM(TU-T G.651) / DS(TU-T G.653) / NZDSITU-T G.655) |
| Compatible Flber | 0.25~3.0 mm / Rubber-insulated fber cable |

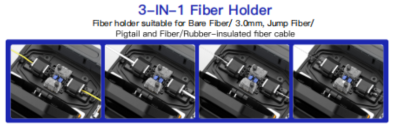

| Fiber Holder | Replaceable universal ftber holder |
| Fiber Diameter | Cladding:80- 150um, Coating: 1001000um |
| Fiber Cleave Length | 8-16 mm |
| Splice Mode | Max 128 modes |
| Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657; 0.02dB |
| Return Loss | >>60d8 |
| Splicing Time | SM Quick mode: 8 sec/ SM Average: 10 sec |
| Heating Time | Quick mode 18 sec.(SM 9652 250um 40mm Sleeve) adjustable |
| Protection Sloeve Length | 20mm, 30mm, 40mm, 50mm, 60mm |
| Heat Programs | Max 32 modes |

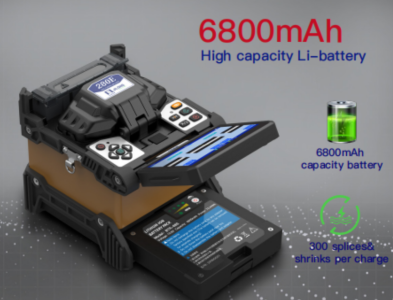

| Battery Capacity | 6800mAh Battery Capacity, Typical 300 Cycles Slice&Heat) per Charge |
| Electrode Life | 5000 arcs, can be extended by using an electrode grinder |
| Automatic Fiber Identification | Automatic arc calibration by air pressure and temperature |
| Results Storage | The last 10,000 splice records and 2,000 result images |
| Tension Test | 1.96-2.25N |
| Operating Condition | Altitude: 0-5000m, 0-95% relative humidity, -20-50″C, Max Wind 15m/s |
| Storage Condition | 0-95% relative humidity, -20-60C |
| Display | 4.3”color high resolution (800 x 480) display |
| Power Supply | AC Input 100 -240V, DC Input 9-14V |
| weight | 1.6kg without battery / 1.9kg with battery |
| size | 143H x 136W x 155D mm (including rubber bumper) |
