HSGQ offers Internet and telecom service providers a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream.
G008 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-TG.984/G. 988
The HSGQ network is intelligently managed using the included NMS (Network Management System) controller. HSGQ devices consist of the HSGQ OLT(deployed at the provider premises) and the HSGQ consumer premises equipment ONUs.

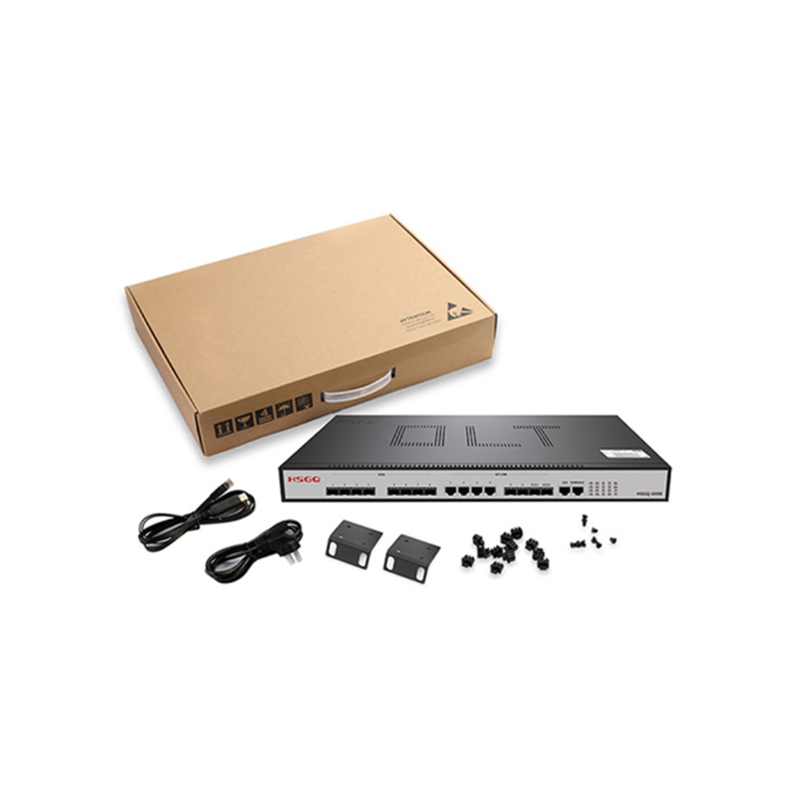

The HSGQ OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.

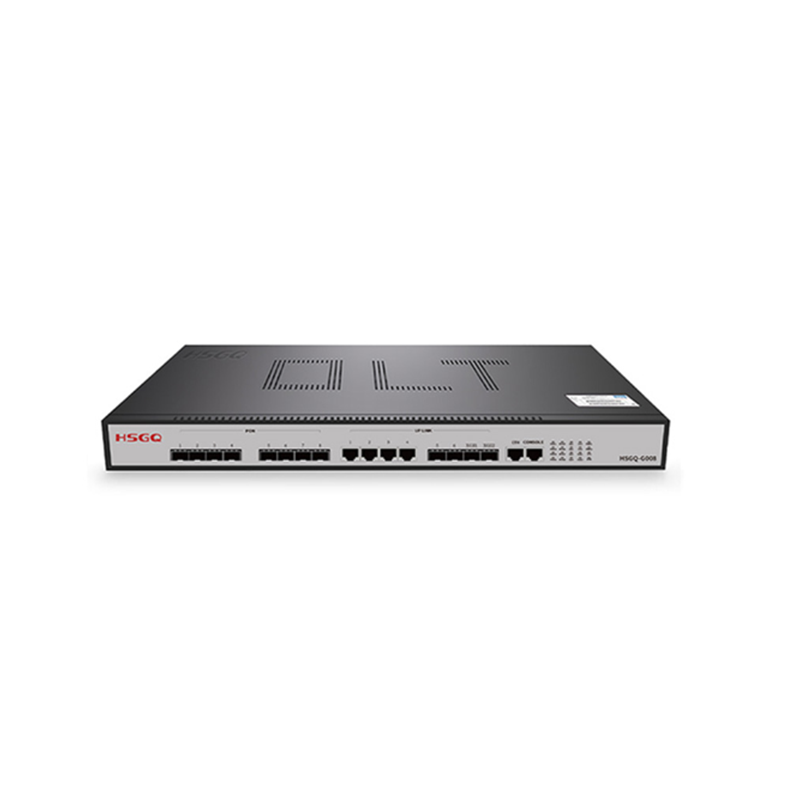

G008 provides 8* downlink GPON port, 4*GE RJ45, 2*GE SFP port and 2* 10G SFP+ port. The height is only 1U for easy installation and space saving. G008 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things,etc.
Product Features
| PON Features | ITU-T G.984.x/G.988;
SN LOID/LOIDPassword/LOID+LOID Password authentication modes; Terminal access up to 20km on a single fiber; 1:128 split ratio on single PON port Support up to 128 ONUs in single port DBA algorithm, and the particle is for 64Kbit/s; Standard OMCl management function; ONU batch software upgrade; PON port optical parameter detection; Auto registeration ONU bound with default profile |
L2 Features
| MAC | MAC Black Hole;
Port MAC Limit; 64K MAC(packet exchange chip cache 2MB ); |
| VLAN | 4K VLAN entries;
Port-based VLAN classification; Uplink VLAN Swap and VLAN Remark; |
| Spanning Tree | STP/RSTP/MSTP
Loop detection |
| Port | Support link aggregation;
Port mirroring; |
| Service Port | Auto configuration service-port by profile
VLAN transparent/tag/stacking/aggregation |
Service Features
| Qos | Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow;
CAR(Committed Access Rate),Traffic Shaping and flow statistics; Packet mirror and redirection of interface ands elf-defined flow; Supports priority marking of ports or custom flows and provides 802.1p, DSCP-priority Remark capability; Super queue scheduler based on port or self-defined flow. Each port/flow supports 8 priority queues and scheduler of SP, WRR andSP+WRR; Congestion Avoidance Mechanism, including Tail-Drop and WRED; |
| ACL | Standard and extended ACL;
Time Range ACL;Flow classification and flow definition based onsource/destination MAC addressVLAN,802.1p,ToS, DiffServ, source/destination IP(IPv4/IPv6) address,TCP/UDP port numberprotocol type, etc; packet filtration of L2～L7 deep to 80 bytes of IP packet head; |
| lPv4 | DHCP Relay;
DHCP Server; DHCP Snooping; Static Routing; |
| Multicast | IGMPv1/v2/v3 Snooping;
IGMP Fast leave; IGMP Proxy; Compatible with lGMP v3 |
Reliability
| Loop Protection | Loopback-detection; |
| Link Protection | RSTP/MSTP (recover-time <1s);
Link aggregation (recover-time <10ms); |
| Device Protection | 1+1 power hot backup; |
Security Features
| User Security | Anti-ARP-spoofing;
Anti-ARP-flooding; Port lsolation; MAC address binding to the port and MAC address filtering; |
| Device Security | Support the control layer to prevent a variety of DoS attacks and virus attacks against the CPU;
Hierarchical management and password protectionof users; SSHv2 Secure Shell; Login Security lP via Telnet; |
| Network Security | User-based MAC and ARP traffic examination;
Restrict ARP traffic of each user and force-out user with abnormal ARP traffic; Dynamic ARP table-based binding; IP+VLAN+MAC+Port binding; L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet; Port-based broadcast/multicast suppression and auto-shutdown risk port; DHCP Option82 and PPPoE+ upload user’s physicai location |
Maintenance
| Network Maintenance | Port real-time, utilization and transmit/receive statistic
Powerful WEB GUI GPON OMCl; Data Logging and RFC 3164 BSD syslog Protocol; Ping |
| Device Management | Console port, Telnet, SSH management;
Out-band management; SNMPv1/v2 RMON(Remote Monitoring)1,2,3,9 groups MIB; SNTP; Fan management |
Product Specification
| Switching Capacity | 82Gbps |
| Service Port | 8*PON port,4*GE RJ45,2*GE SFP port,2*10GE SFP+ port |
| Redundancy Design | Dual power supply
support double Ac input, double DC input and AC+DC input |
| Power Supply | AC: input 100～240V 50/60Hz |
| Power Consumption | 55W |
| Dimension (Width x Depth x Height) | 440mm ×44mm ×380mm |
| Weight (Full-Loaded) | ≤5kg |
| Environmental Requirements | Working temperature: -10℃～55°C
Storage temperature:-40C～70C Relative humidity: 10%～90%, non-condensing |
