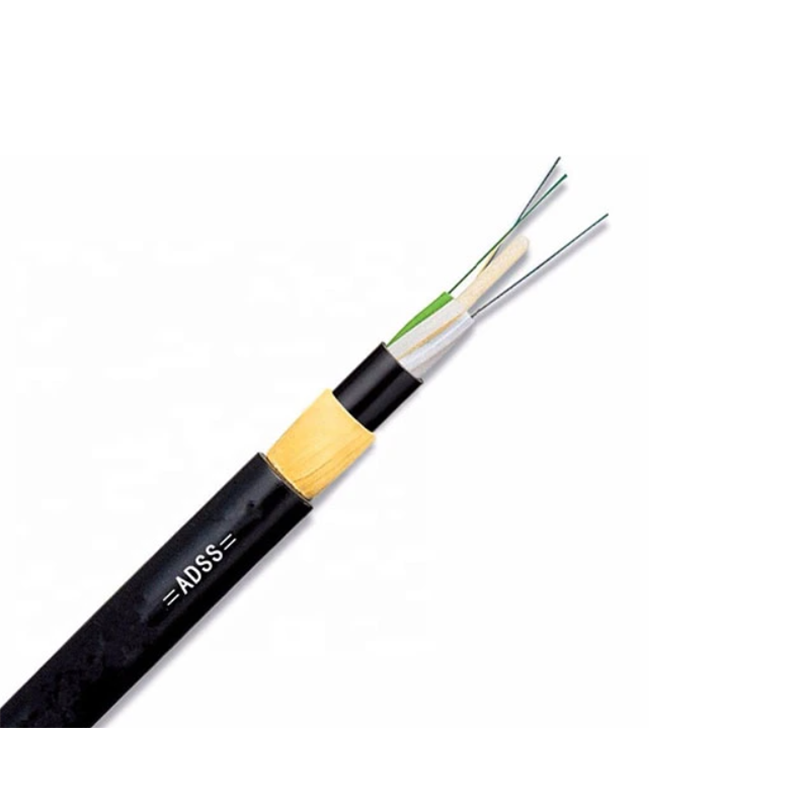

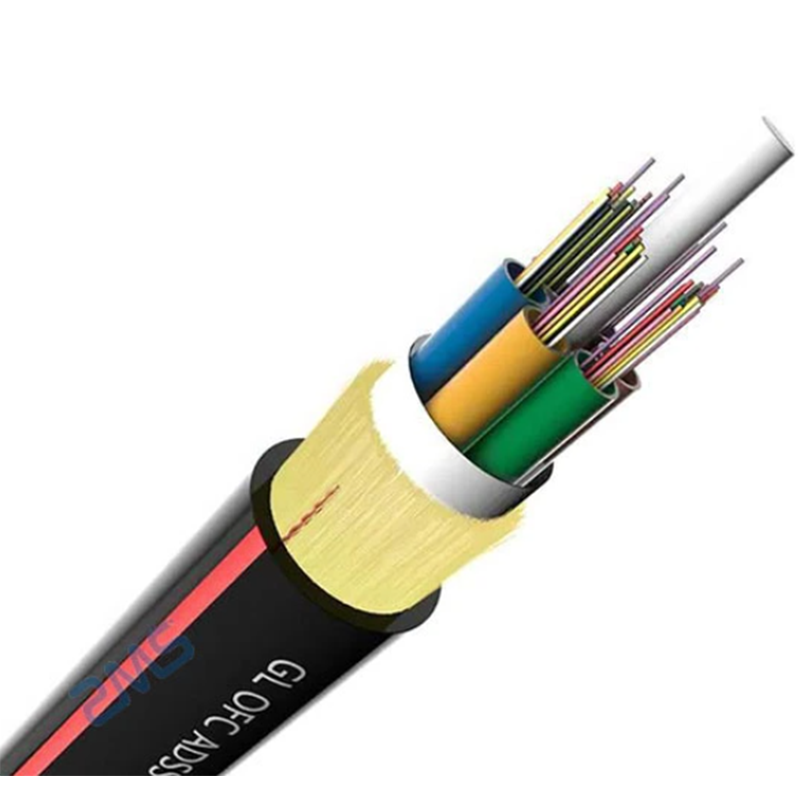

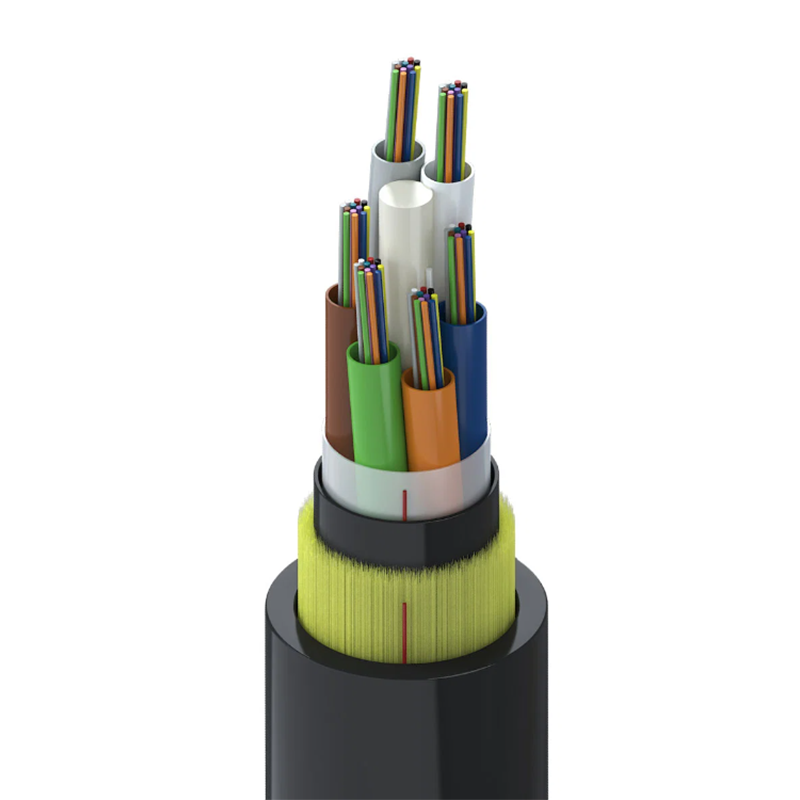

Description
1.Loose tube design Stable performance and compatibility with all common fiber type
2.Self-supporting
Instead of Aramid yarn or glass yarn, there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4.Sutable for Aerial self-support installation
Optical Fiber Cable ADSS Technical Data
| ADSS with PE sheath | |||
| Order type model | ADSS-PE 24 M15.5/ A | ADSS-PE48 M17.7 / C | ADSS-PE72 M21.2 / D |
| Fiber count | 24 fiber | 48 fiber | 72 fiber |
| Size of tube | φ2.1mm | φ2.6mm | Φ3.0mm |
| Cable diameter | φ13.4mm | φ14.9mm | φ16.4mm |
| Cable weight | 139kg/km | 172kg/km | 209kg/km |
| RTS | 38.8kN | 44.3kN | 56.6kN |
| Linear expansion coefficient | 2.2×10-6/℃ | 2.0×10-6/℃ | 1.8×10-6/℃ |
| Modulus | 16.5kN/mm² | 17.5kN/mm² | 18.6kN/mm² |
| ADSS with AT sheath | ||||
| Order type model | ADSS-AT 24 M14 / A | ADSS-AT48M15.2 / C | ADSS-AT72 M21.2 / D | ADSS-AT144 M12.3 / D |
| Fiber count | 24 fiber | 48 fiber | 72 fiber | 144 fiber |
| Size of tube | φ2.1mm | φ2.6mm | Φ3.0mm | Φ3.0mm |
| Cable diameter | φ13.2mm | φ14.3mm | φ16.3mm | Φ20.7mm |
| Cable weight | 146kg/km | 169kg/km | 220kg/km | 344kg/km |
| RTS | 35kN | 37.9kN | 52.9kN | 3.08kN |
| Linear expansion coefficient | 4.5×10-6℃ | 4.8×10-6/℃ | 3.6×10-6/℃ | 3.5×10-6/℃ |
| Modulus | 15.5kN/mm² | 14.9kN/mm² | 17.9kN/mm² | 6.22kN/mm² |
